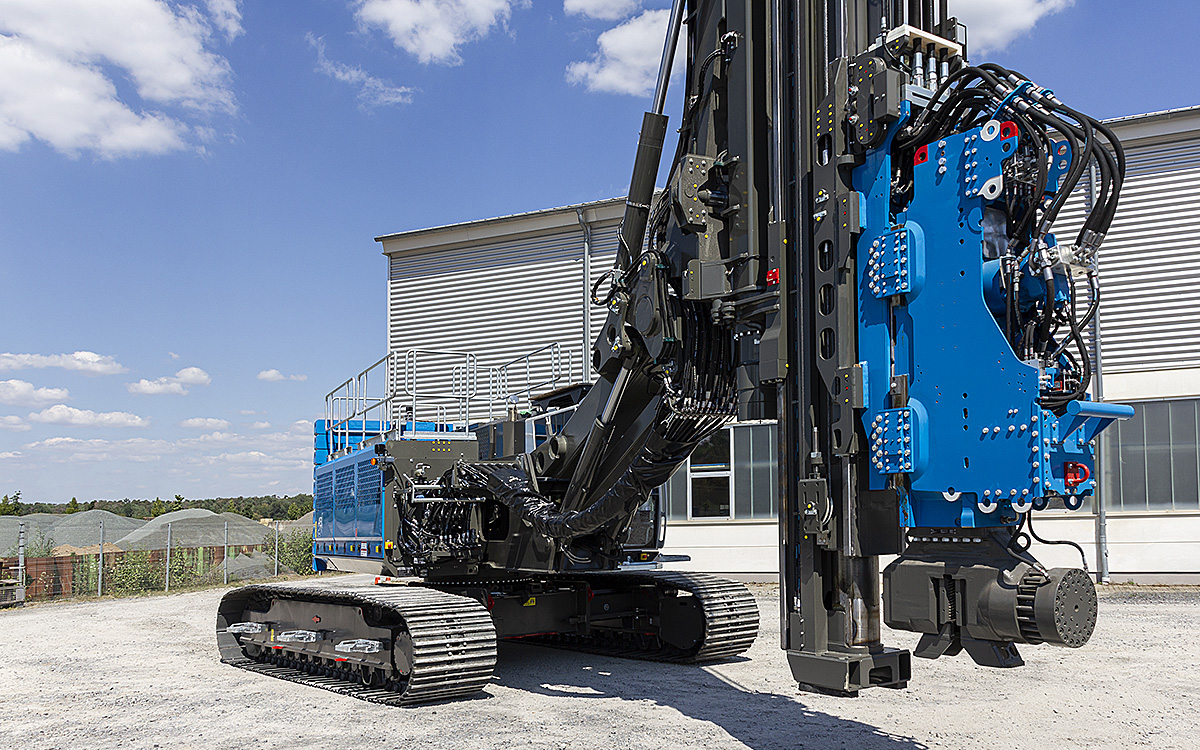

MOBILRAM TM 20 LR
With the ABI MOBILRAM TM 20 LR, the suffix LR stands for more reach. With a value of over 8000 mm, the TM 20 LR has a significantly greater reach than the standard TM 20 machine and is designed for piling work above or below the working level, e.g. on or below embankments. The short stackable counterweights make it possible to work within a smaller tail swing radius. The Efficiency Drive is installed as standard and significantly improves the efficiency of the machine.
Long reach - Smaller tail swing radius – Versatile
All advantages at a glance
- Increased reach
- Small tail swing radius
- Energy-efficient due to Efficiency Drive
- Patented "mast in mast" design
- Easy mobilisation with Docking-System
- Versatile in use
| Technical Data | Value | Unit |
|---|---|---|
| Total height: | 23920 | mm |
| Reach: | 8000 | mm |
| Leader mast slewing range: | +/- 93° | left / right |
| Stroke guiding carriage: | 20000 | mm |
| Torque absorption max. | 150 | kNm |
Vibrator
MRZV 20VV
MRZV 22VV
MRZV 25VV
MRZV 30VV
Auger Drive MDBA
MDBA 7000
Auger Drive TMBA
TMBA 2-7000
Piling and Extracting
Drilling
Mixing
